Portable Permeameter for Field & Core Sample Permeability Testing

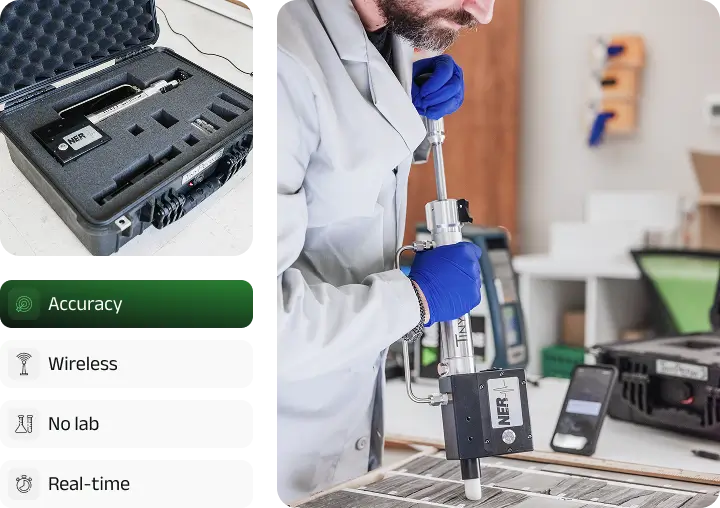

NER TinyPerm3
Get precision measurements, anywhere with the NER TinyPerm3. Capture accurate permeability and fracture aperture data directly in the field or on core samples, with wireless data logging and real‑time measurement visualization. No lab setup required.
Why Rent the NER TinyPerm3 Permeameter from RohmTek?
- Rock-Solid Accuracy, Portable Design
- Instant Wireless Data Capture
- No Lab? No Problem.
- Real-Time Feedback in the Field
Quick specs
Feature
NER TinyPerm3
Permeameter Analyzer
Detection
Estimating rock permeability by injecting air and monitoring the pressure decay
Accuracy & Precision
R² > 0.9 (low-permeability), >300 mD (high-permeability)
Analytical Range
0.01 (mD) to 10 Darcy (D)
Build
Manual syringe with MCU pressure monitor
Weight
2.6 Ibs
Power
No batteries required; Android device is rechargeable
Software
TinyPerm Android App (included)
Connectivity
Wireless via Android™ tablet (provided)
Who We Serve
Top Applications for the TinyPerm3
Outcrop Permeability Surveys
Evaluate fluid flow characteristics of exposed rock formations on-site.
Core Sample Testing
Perform high-resolution permeability analysis on drilled rock cores without damaging samples.
Fracture Aperture Measurements
Characterize natural or induced fractures in geotechnical and subsurface exploration.
Geothermal and Hydrocarbon Assessments
Determine reservoir viability with in-situ measurements during site evaluation.
Field Education and Research
Teach real-time permeability concepts with easy-to-use tools in geoscience field courses.
Landfill Cap Integrity Testing
Measure surface permeability to verify containment effectiveness and ensure environmental compliance for landfill operations.
FAQs
Clarity and Confidence in Every Step
Get answers to your most pressing questions about the NER TinyPerm3 rental.
Does it require additional equipment?
No, the NER TinyPerm3 is designed for field use and does not need a lab setup. Just use the probe, and the Android device will handle the data collection. It’s fully operational in any outdoor environment.
Can it measure fractures?
Yes, the NER TinyPerm3 can measure fracture apertures ranging from 10 microns to 2 mm. This capability makes it suitable for both natural and induced fractures. It’s an essential tool for geotechnical assessments.
What’s included in rental?
The rental includes the NER TinyPerm3 unit, an Android™ device with the necessary software, a carrying case, and training documentation. This package ensures you have everything needed for seamless operation. We aim to provide a hassle-free experience for our clients.
How is date recorded?
Data is recorded in real-time using the NER TinyPerm app on the provided Android device. It automatically logs important information such as GPS location and environmental conditions. This ensures you have comprehensive data for your analysis.
Is training included?
Yes, we provide comprehensive usage instructions along with support to ensure you can operate the NER TinyPerm3 effectively. Our team is available to assist you with any questions you may have. We want you to achieve accurate results right from the start.
What happen if i have an issue with my rental unit?
If something goes wrong, you’re not on your own. Reach out to us, and you’ll get a real person who understands the equipment and can help you troubleshoot quickly. Most issues can be resolved on the spot with guidance from our team. If not, we’ll move fast to get you a clear next step so your project stays on track.
Unlock Your Field Potential
Experience seamless permeability testing in any environment.
